SB Live! 24-bit External
Realtek AC97 Audio

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 48 kHz




Summary

TestSB Live! 24-bit ExternalRealtek AC97 Audio
Frequency response (from 40 Hz to 15 kHz), dB: +13.41, -4.02+0.18, -0.74
Noise level, dB (A): -70.8-74.4
Dynamic range, dB (A): 86.474.3
THD, %: 0.00620.046
IMD + Noise, %: 0.2080.079
Stereo crosstalk, dB: -86.3-73.0

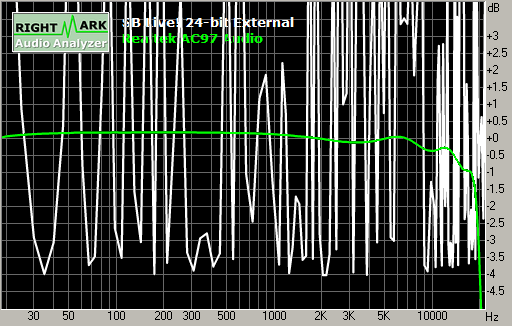

Frequency response

Spectrum graph

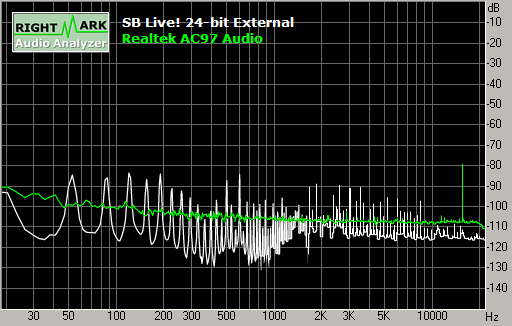

Noise level

Spectrum graph

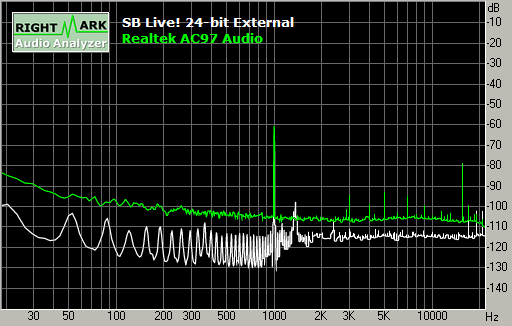

Dynamic range

Spectrum graph

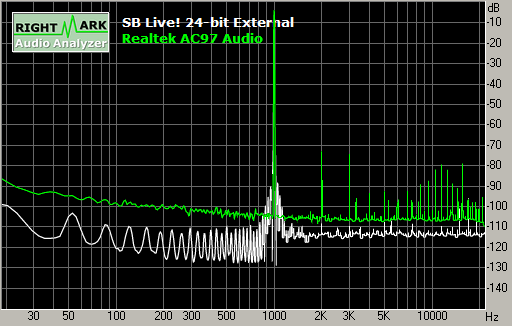

THD + Noise (at -3 dB FS)

Spectrum graph

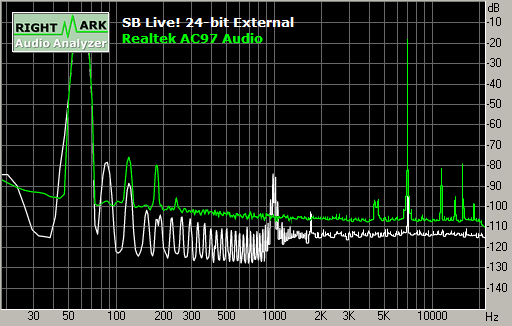

Intermodulation distortion

Spectrum graph

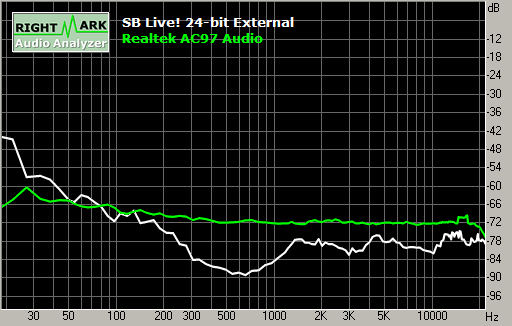

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.5
