kX Wave SB0222 10k1 [e800] 0/1
SB Live! 24-bit External

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 32-bit, 192 kHz




Summary

TestkX Wave SB0222 10k1 [e800] 0/1SB Live! 24-bit External
Frequency response (from 40 Hz to 15 kHz), dB: +0.00, -0.00+0.07, -0.13
Noise level, dB (A): -96.7-99.8
Dynamic range, dB (A): 98.896.6
THD, %: 0.00190.010
IMD + Noise, %: 1.3130.019
Stereo crosstalk, dB: -95.9-98.5

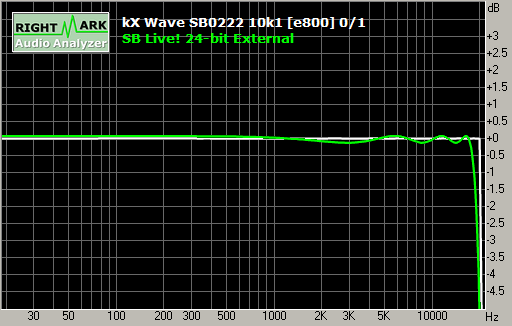

Frequency response

Spectrum graph

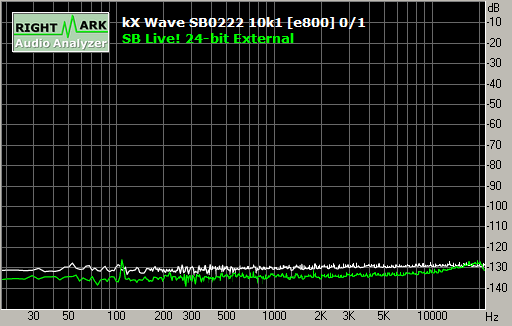

Noise level

Spectrum graph

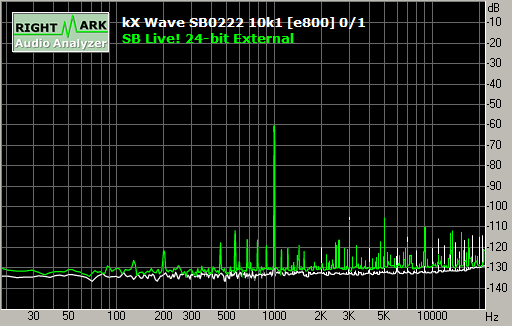

Dynamic range

Spectrum graph

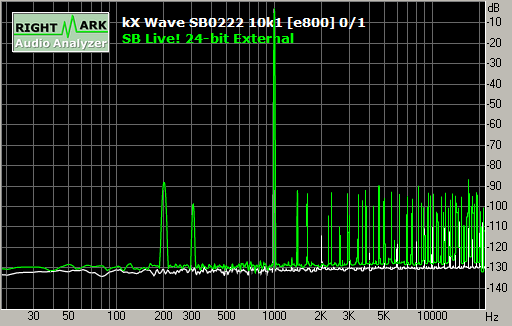

THD + Noise (at -3 dB FS)

Spectrum graph

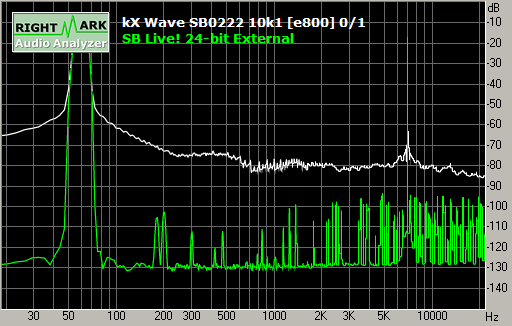

Intermodulation distortion

Spectrum graph

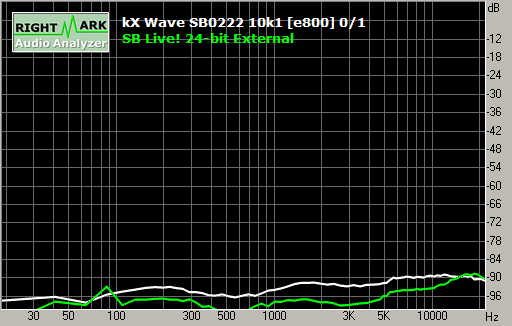

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.5
